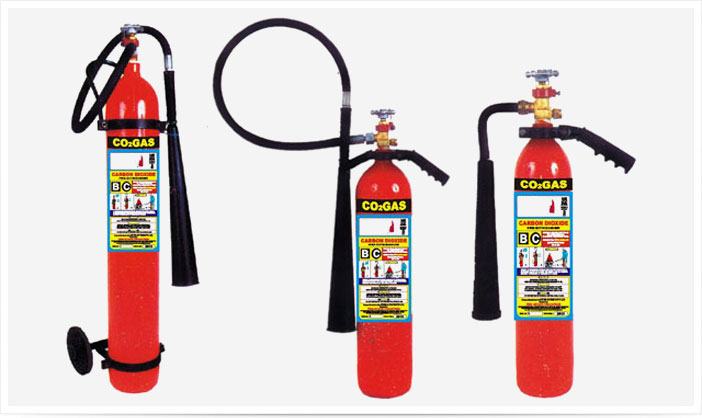

CO2 is a liquefied gas, which is highly effective fighting B and C class of fires. These extinguishers are ideal for areas where contamination and/or clean-up are a concern, such as data processing centers, labs, telecommunication rooms, food storage and processing areas etc.
Features
- Colorless, Odorless CO2 Gas Suitable for Class B, C Fire.
- Manganese Steel / Carbon Steel Cylinder (IS 7285)
- Screwed down /Squeeze Grip Type discharge valve
- BIS 15683 Approved
- Maintenance should be done as perIS 2190:2010
User Friendly
- No Electrical Conductivity Back To The Operator
- No Thermal Or Static Shock
| Type | STORED PRESSURE | ||
| Model | FSI -CO2-2 | FSI -CO2-3 | FSI -CO2-4.5 |
| Capacity (Kg) | 2 | 3 | 4.5 |
| Average discharge time | 9 sec | 9 sec | 10 sec |
| Height | 580 mm | 545 mm | 705 mm |
| Diameter | 108 mm | 140 mm | 140 mm |
| Empty Weight (Kg) | 6.2 | 9.9 | 12.4 |
| Filled Weight (Kg) | 8.2 | 12.9 | 16.7 |
| Operating temperature | -30ºC to +55ºC | -30ºC to +55ºC | -30ºC to +55ºC |
| Maximum Services | 16.9 MPa | 16.9 MPa | 16.9 MPa |
| Test Pressure | 250 bar | 250 bar | 250 bar |
| Fire ratings | 8B | 13B | 34B |
