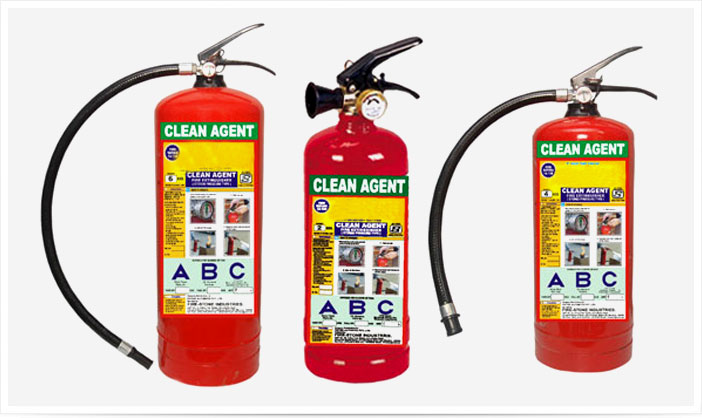

Innovative Solutions offer the superior performance and reliability you expect from quality products. CLEAN AGENT applications where the agent must be clean, electrically nonconductive, environment-friendly, extremely low in toxicity and exceptionally effective.
Features
- Stored Pressure Design
- Deep Drawn Steel Cylinders
- Squeeze Grip type discharge Valve made out of Brass with Chrome Plated
- Residue-free Hydro Fluorocarbon Gas Agent Pressurized with dry Nitrogen.
- Excellent Replacement For Halon 1211 Extinguishers.
- High Performance Extinguishing Agent.
- BIS 15683 Approved
- Maintenance should be done as per IS 2190: 2010
Useful For
- Computer Rooms / Laboratories
- Server-data Room / Tele-communications
- Aerospace- Warehouse
- Hospitals - Medical Equipments
- Sensitive Expensive Equipment
User Friendly
- No Electrical Conductivity Back To The Operator
- No Thermal Or Static Shock
Environmentaly Acceptable
- EPA approved "Clean Agent" for Class A, B and C class hazards
- Low GWP (Global Warming Potential)
- Low ODP (Ozone Depletion Potential)
- Short Atmospheric Lifetime
TYPE | STORED PRESSURE | ||
Model No. | FSI-SP-CA 2 | FSI-SP-CA 4 | FSI-SP-CA 6 |
Capacity (Kg) | 2 | 4 | 6 |
Diameter (mm) | 108 | 130 | 150 |
Height (mm) | 395 | 450 | 525 |
Empty Weight (apx) | 1.9 | 2.9 | 3.6 |
Filled Weight (apx) | 3.9 | 6.9 | 9.6 |
Operating Temperature | -30ºC to +55ºC | -30ºC to +55ºC | -30ºC to +55ºC |
Working Pressure at 27°C | 15 bar | 15 bar | 15 bar |
Maximum Service pressure | 1.9 MPa | 1.9 MPa | 1.9 MPa |
Test pressure | 35 bar | 35 bar | 35 bar |
Average Discharge Time(S) | 11 | 13 | 19 |
Discharge Range (mtrs) | <4 | <4 | <4 |
Fire Rating | 1A, 8B | 1A, 13B | 2A, 13B |
