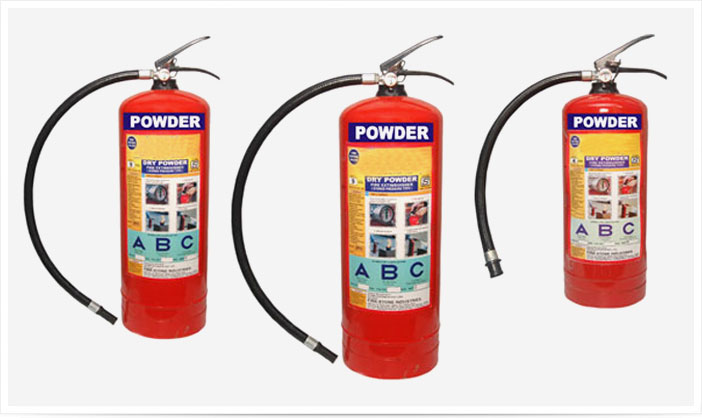

ABC or Multi-Purpose Fire extinguishers comprise of a special fluidized and siliconized mono ammonium phosphate dry chemical powder. It chemically insulates Class A fires by melting at approximately 350°F and coats surface to which it is applied. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.
Features
- Stored Pressure Design
- Drawn Steel Cylinders
- Durable High Glossy Powder coating
- Squeeze Grip type discharge Valve and cap made out of Brass with Chrome Plated
- BIS approved MAP based multi-purpose powder
- BIS 15683 Approved
- Maintenance should be done as per IS 2190 ::2010
User Friendly : Easy and More Economical to Maintain and Service
| TYPE | STORED PRESSURE | CARTRIDGE OPERATED | |||||
| Model.no | FSI -SP- ABC-2 | FSI -SP- ABC-4 | FSI -SP- ABC-6 | FSI -SP- ABC-9 | FSI -C- ABC-4 | FSI -C- ABC-6 | FSI -C- ABC-9 |
| Capacity (Kg) | 2 | 4 | 6 | 9 | 4 | 6 | 9 |
| Diameter (mm) | 108 | 130 | 160 | 175 | 140 | 150 | 175 |
| Height (mm) | 395 | 485 | 550 | 605 | 400 | 495 | 615 |
| Empty Weight (Kg) | 1.8 | 2.8 | 3.5 | 4.7 | 4.5 | 5.1 | 7.1 |
| Filled Weight (Kg) | 3.8 | 6.8 | 9.5 | 13.7 | 8.5 | 11.1 | 16.1 |
| Operating Temperature | -20 ºC to +55 ºC | -20 ºC to +55 ºC | -20 ºC to +55 ºC | -20 ºC to +55 ºC | -20 ºC to +55 ºC | -30 ºC to +55 ºC | -30 ºC to +55 ºC |
| Working Pressure At 27 ºC | 15 bar | 15 bar | 15 bar | 15 bar | 15 bar | 15 bar | 15 bar |
| Maximum Service Pressure | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa |
| Test Pressure | 35 bar | 35 bar | 35 bar | 35 bar | 35 bar | 35 bar | 35 bar |
| Average Discharge Time (s) | 10 | 15 | 20 | 30 | 15 | 24 | 30 |
| Discharge Range (mts) | <4 | <4 | <4 | <6 | <4 | <4 | <6 |
| Fire Rating | 1A, 8B | 2A, 21B | 2A, 21B | 3A, 21B | 3A, 55B | 3A, 34B | 4A, 55B |
