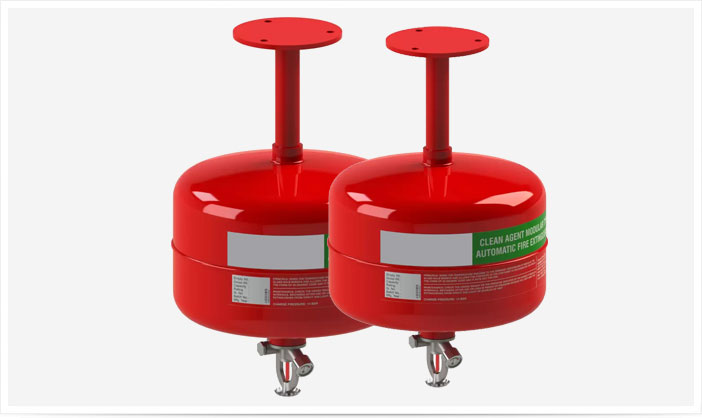

Fire is a calamity that strikes without any warning and causes an unimaginable havoc. According to a survey conducted, 80% of the most damaging fires occur during night times, weekends or holidays when no one is around. Hence an automatic operation is the only solution for round-the-clock protection against any kind of fire. Fire Stone fire extinguishers are simple and economical solution for buildings or structures where detection and suppression piped systems prove cumbersome and very expensive.

How Do They Work?

When heat from an uncontrolled fire increases to a pre-set temperature of the unit, the fusible link releases, discharging the extinguishing agent. The release temperature of the extinguisher (fusible link) can be pre-set at works ranging from 57 deg C/68 deg C/79 deg C/93 deg C/140 deg C and so on. They require no external source of energy and it can be operated electrically manually or mechanically for their operation.

Salient Features

  • An Automatic Detection and Suppression System together in a single unit quite unlike any other system available in the market
  • Automatic round-the-clock protection
  • Available in individual units or as a Complete system
  • Automatic, hence no human involvement, reducing the chances of injury and accidents to virtually zero.
  • Proves to be the most economical w hen compared and no surface re-laying
  • Reusable cylinder as it is not based on aerosol technology. Hence, most economical
  • Non-Freezing & long lasting.

Contents

Available with either ABC all purpose Dry chemical powder, Purple k , UL listed ABC powder , or HFC-227ea and HFC-36 (also known as FM-200TM, a registered trademark of Great Lakes Chemical Corporation or as Dupont's FE-227TM, range of extinguishing agents.
As HFC-123 more commonly known as HALOTRON is slated to be phased out after 2013, Fire Stone does NOT recommend it to its clients.

Electro Piston Actuator (Optional Feature)

Switch can be linked into the wiring circuit for electric operation with solenoid actuator. This additional special facility can be attached at minimum extra cost.

Mounting Arrangement (Optional Feature)

Mounting Arrangement can be designed for special application request.

Applications

In Industries of following Types : Powder, Textile,Chemicals, Fertilizers, Petrochemicals, Refineries, Ceramics, Metal Processing, Vegetable Oil, Rubber, Wood, Paper and Pulp, Printing, Plastic, Paint, Computer etc. having special process hazards like Boiler & Furnaces, Fluid Power Systems, Oil quenching, Spray Finishing, Powder Coating, Dipping and Coating, Welding & Cutting, Grinding, Solvent Extraction, Conveyor Systems, Aerosol Charging, Transformers & Electrical Junction Boxes, Control Panels etc.

Applicability for General Occupancies & Storage Areas

Like Storage of Flammable & Combustible Liquids and Gases, Grain Mill Products Solid Fuels, Records, Libraries, Museums, Showrooms, Shops, Offices, Residential premises, Workshop, Garages, Paint Booths, Theaters, Radio Rooms, TV Stations etc.
The Common Features For All Models

Expellant : Nitrogen
Cylinder Test Pressure : 30 kgf /cm2
Cylinder : Stainless Steel / M. S. Plate Powder coated
