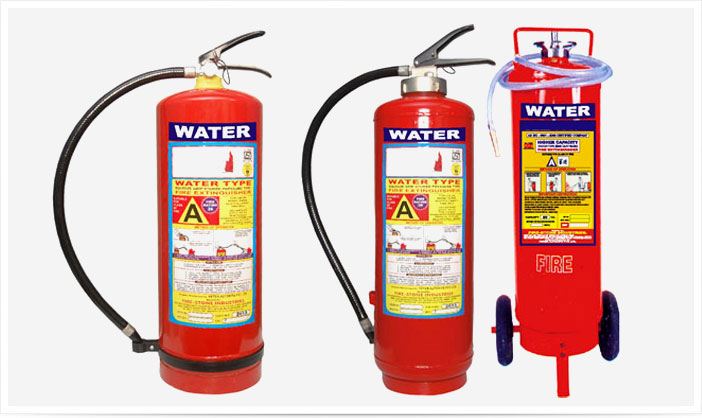

Water Fire Extinguishers utilities the penetrating, soaking and cooling effective of a concentrated water stream for effective suppression of Class A Fires. It is an ideal low cost solution to provide Class A protection from all fire involving freely burning material such as wood, paper or fabric.
Features
- Only for fighting class A fire
- Drawn Steel Cylinders
- High quality epoxy polyester powder coated
- Squeeze Grip type discharge Valve and cap made out of Brass with Chrome Plated
- BIS 15683 Approved
User Friendly : Easy and More Economical to Maintain and Service
Warning : Do not use on electrical fires.
| TYPE | STORED PRESSURE | CARTRIDGE OPERATED |
| Model.no | FSI-SP W-9 | FSI-C W-9 |
| Capacity (Kg) | 9 | 9 |
| Diameter (mm) | 175 | 175 |
| Height (mm) | 605 | 615 |
| Empty Weight (Kg) | 13.7 | 7.5 |
| Filled Weight (Kg) | 13.7 | 16.5 |
| Operating Temperature | +5ºC to +55ºC | +5ºC to +55ºC |
| Working Pressure At 27 °C | 15 bar | 15 bar |
| Maximum Service Pressure | 1.8 MPa | 1.8 MPa |
| Test Pressure | 35 bar | 35 bar |
| Average Discharge Time (s) | 120 | 120 |
| Discharge Range (mts) | <6 | <6 |
| Fire Rating | 2A | 2A |
